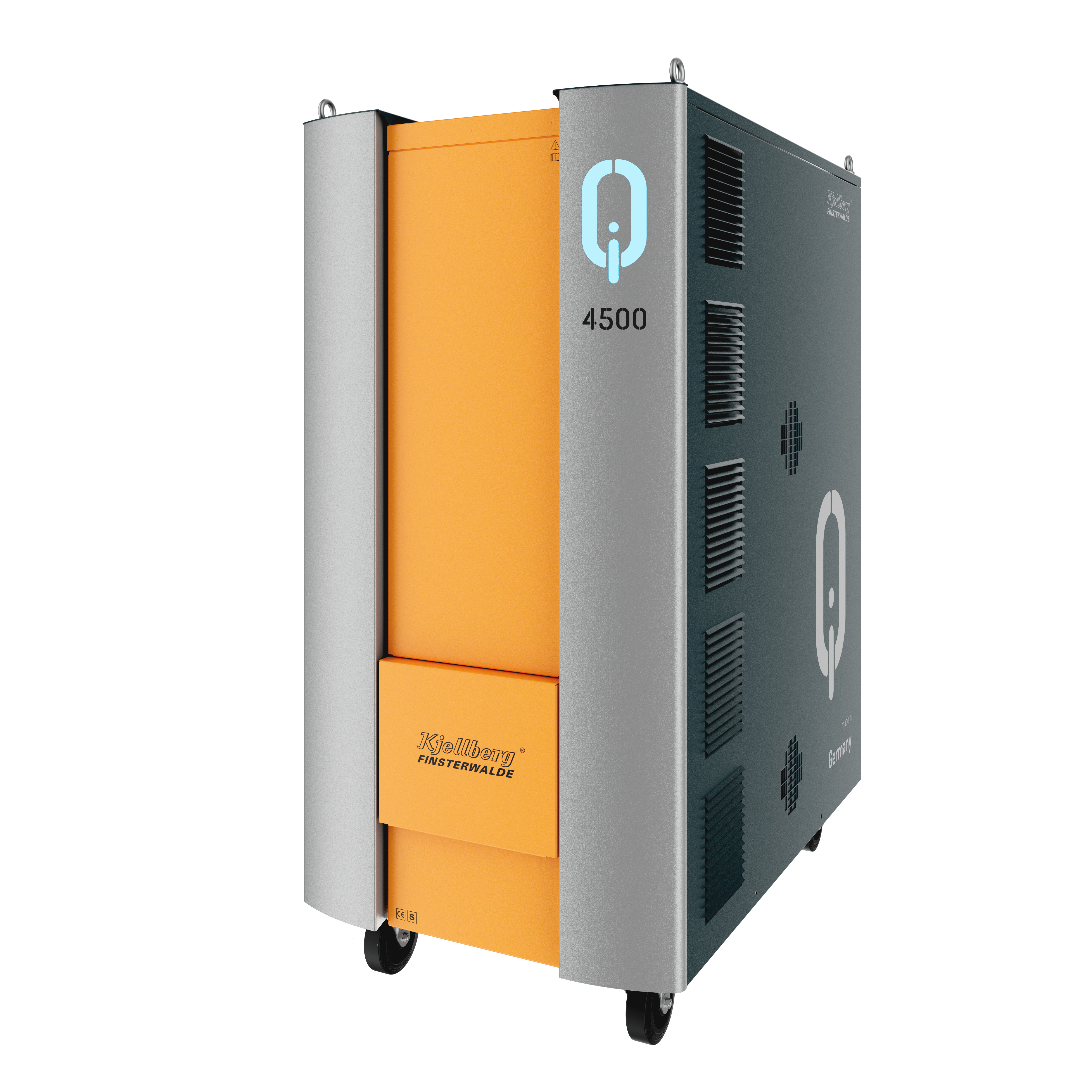

iQ 4500
The iQ 4500 is Kjellberg Finsterwalde's most powerful plasma cutting system. With a cutting current of up to
450 A, it is designed for automated cutting applications that demand high performance and reliable cutting results.
Its extensive cutting range allows a wide variety of material thicknesses to be processed. The iQ 4500 cuts mild steel up to 120 mm thick and stainless steel up to 130 mm thick, covering a broad spectrum of industrial cutting applications.
Q-Desk provides real-time access to relevant process and system data. This improves transparency during operation and supports targeted monitoring and optimisation of cutting processes.
With TorchGuardian as standard, the iQ-Series offers intelligent torch protection functions for greater process reliability in plasma cutting. The integrated technologies monitor the condition of consumables, display relevant status information and enable efficient consumable utilisation and planned consumable changes.
The Q-Torch Auto Change System provides the basis for automation within the plasma cutting process. Automatic torch changes reduce manual intervention and support continuous production.
Typical applications include demanding automated cutting processes in steel construction, plant engineering and industrial manufacturing.
Technical documentation for the iQ-Series:
Operating manuals, brochures and further information are available in the iQ Help Centre.
| Power source | iQ 4500 | |
| Cutting current at 100% d.c.1 | 20 - 450 A | |
| Marking current at 100% d.c.1 | 5 - 60 A | |
|
iQ-Gas O2 |
iQ-Gas |
|
Cutting ranges Mild steel RecommendedMaximumPiercing |
0.5 - 70 mm 120 mm 70 mm |
0.5 - 70 mm 120 mm 70 mm |
| Cutting ranges Stainless steelMaximumPiercing |
60 mm 30 mm |
130 mm 50 mm |
| Cutting ranges AluminiumMaximumPiercing |
60 mm 40 mm |
120 mm 60 mm |
Dimensions (LxWxH) |
1150 x 695 x 1510 mm |
|
| Mass | 355 kg | |
| Fuse, slow | 180 A | |
| Max. Connected load | 109 kVA | |
| Protection class | IP 21S | |
| Mains voltages | 380 - 400 V, 50/60 Hz 415 - 440 V, 50/60 Hz 440 - 480 V, 50/60 Hz |
|
1 Ambient temperature 40 °C
Process Monitoring & Automation
Q-Desk
Real-time process and system data for transparent monitoring and targeted process optimisation.
TorchGuardian Intelligent functions for monitoring and protecting plasma torches and consumables.
Condition monitoring supports efficient consumable use and more predictable tool changes.
Q-Torch Auto Change System Automatic changing of differently equipped torch heads for different cutting tasks – reducing manual intervention and
supporting continuous production. | more...
Cutting & Cut Quality
Contour Cut Precise contours and holes in mild steel with a diameter-to-material-thickness ratio of 1:1 | more...
Contour Cut Speed Contour cutting in mild steel up to 50% faster with comparable cut quality | more...
Silent Cut Cutting mild steel with a reduced sound pressure level | more...
HiFinox Plasma cutting of stainless steel and aluminium from 1 to 6 mm with reduced dross | more...
Ar/H2 Mix Excellent cutting results through active mixing of individual gases for stainless steel and aluminium from 6 mm | more...
Special Cutting Processes & Marking
Q-Hole Precise holes in mild steel with a diameter-to-material-thickness ratio of 0.75:1 | more...
ProPierce Technology for piercing thicker materials | more...
Q-Bevel Consistently high-quality bevel cutting for material thicknesses from 6 to 50 mm | more...
N2 Plasma Cutting Plasma cutting of stainless steel and aluminium up to 60 mm | more...
Q-Mark/Q-Notch Excellent quality for marking and notching | more...
