iQ 1500

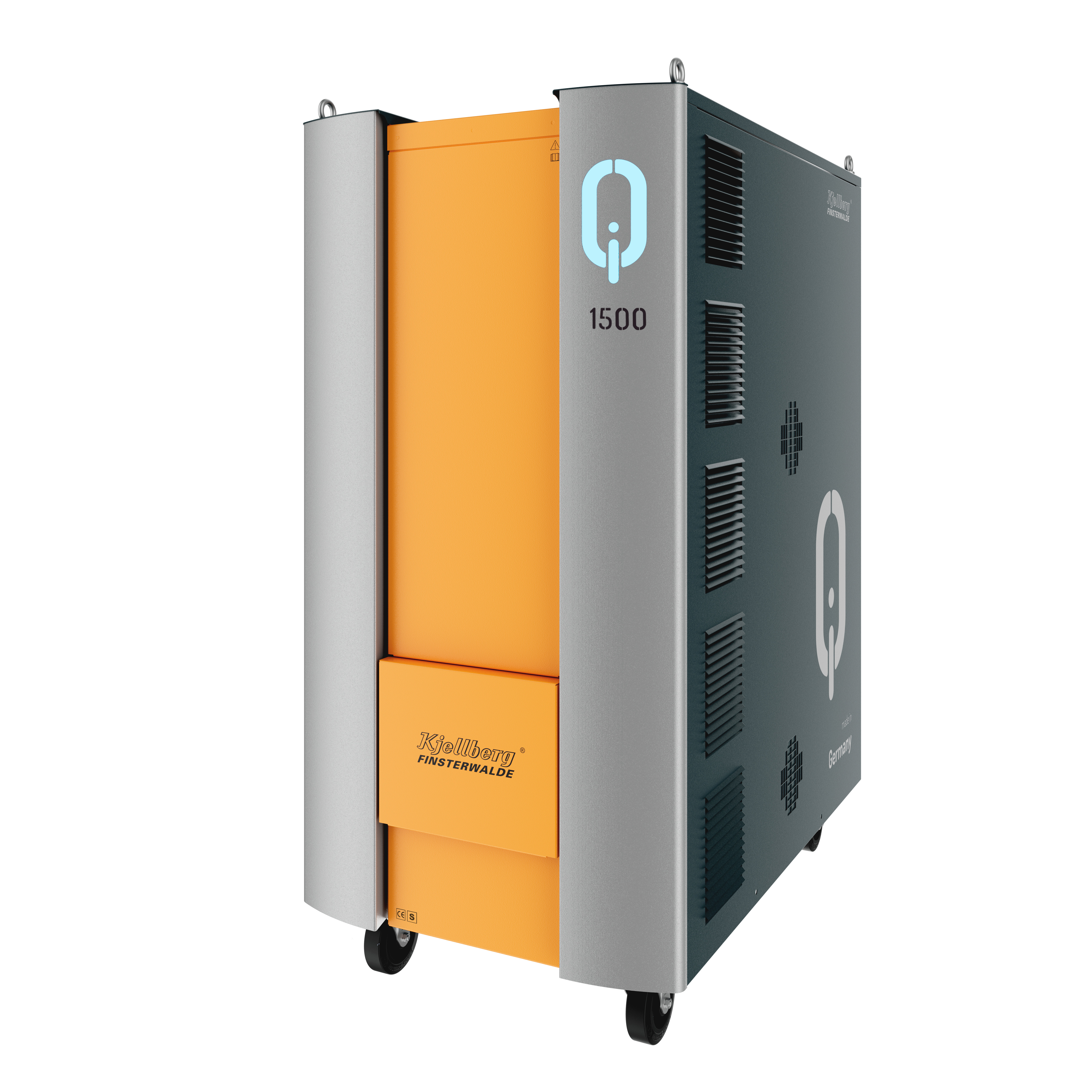

The iQ 1500 from Kjellberg Finsterwalde is designed for precise and reliable plasma cutting of thin to medium-thickness materials. It ensures stable processes and repeatable cutting results across a range of cutting tasks, supporting reliable automated production processes.
Q-Desk provides real-time access to relevant process and system data. This improves transparency during operation and supports targeted monitoring and optimisation of cutting processes.
With TorchGuardian as standard, the iQ-Series offers intelligent torch protection functions for greater process reliability in plasma cutting. The integrated technologies monitor the condition of consumables, display relevant status information and enable efficient consumable utilisation and planned tool changes.
The Q-Torch Auto Change System provides the basis for automation within the plasma cutting process. Automatic torch changes reduce manual intervention and minimise downtime.
Typical applications include automated cutting systems in series production and cutting tasks involving thin to medium-thickness materials. With a cutting current of up to 150 A, the iQ 1500 cuts mild steel up to 60 mm thick.
Technical documentation for the iQ-Series:
Operating manuals, brochures and further information are available in the iQ Help Centre.
| Power source | iQ 1500 / iQ 1500 plus | |
| Cutting current at 100% d.c.1 | 20 - 150 A | |
| Marking current at 100% d.c.1 | 5 - 60 A | |
|
iQ-Gas O2 |
iQ-Gas |
|
Cutting ranges Mild steel RecommendedMaximumPiercing2 |
0.5 - 40 mm 60 mm 35 mm |
0.5 - 40 mm 80 mm 50 mm |
| Cutting ranges Stainless steelMaximumPiercing2 |
40 mm 25 mm |
60 mm 30 mm |
| Cutting ranges AluminiumMaximumPiercing2 |
40 mm 25 mm |
60 mm 40 mm |
Dimensions (LxWxH) |
1150 x 695 x 1510 mm |
|
| Mass | 240/281 kg | |
| Fuse, slow | 63 A | |
| Max. Connected load | 35 kVA | |
| Protection class | IP 21S | |
| Mains voltages | 380 - 400 V, 50/60 Hz 415 - 440 V, 50/60 Hz 440 - 480 V, 50/60 Hz |
|
1 Ambient temperature 40 °C
Process Monitoring & Automation
Q-Desk
Real-time process and system data for transparent monitoring and targeted process optimisation.
TorchGuardian Intelligent functions for monitoring and protecting plasma torches and consumables.
Condition monitoring supports efficient consumable use and more predictable tool changes.
Q-Torch Auto Change System Automatic changing of differently equipped torch heads for different cutting tasks – reducing manual intervention and
supporting continuous production. | more...
Cutting & Cut Quality
Contour Cut Precise contours and holes in mild steel with a diameter-to-material-thickness ratio of 1:1 | more...
Contour Cut Speed Contour cutting in mild steel up to 50% faster with comparable cut quality | more...
Silent Cut Cutting mild steel with a reduced sound pressure level | more...
HiFinox Plasma cutting of stainless steel and aluminium from 1 to 6 mm with reduced dross | more...
Ar/H2 Mix Excellent cutting results through active mixing of individual gases for stainless steel and aluminium from 6 mm | more...
Special Cutting Processes & Marking
Q-Hole Precise holes in mild steel with a diameter-to-material-thickness ratio of 0.75:1 | more...
ProPierce Technology for piercing thicker materials | more...
Q-Bevel Consistently high-quality bevel cutting for material thicknesses from 6 to 50 mm | more...
N2 Plasma Cutting Plasma cutting of stainless steel and aluminium up to 60 mm | more...
Q-Mark/Q-Notch Excellent quality for marking and notching | more...
