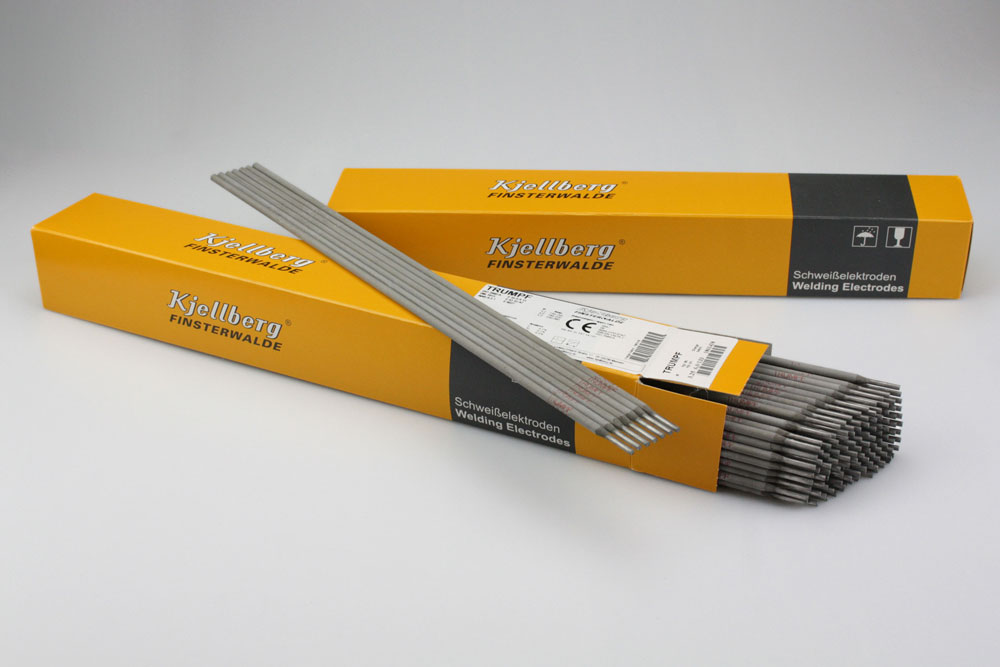

TRUMPF
Trumpf is the electrode for joint welding at very high welding speed in mechanical engineering, steel construction and ship building. It is especially suited for cover passes. This stick electrode is characterised by fine drop transfer, flat concave fillets and easy slag removal.
Standards:
| DIN EN ISO 2560-A | E 35 0 A 13 |
| AWS A 5.1 | E 6027 |
| Construction steel | S235 to S275 |
| Ship steel | A, B, D |
| Pressure tank steel | P195 to P375 |
| Pipe steel | L210 to L245 |
| Cast steel | GE200, GE240, GP240 |
| Reinforcing steel | BSt 420 |
| Type of current | AC DC negative pole |
||
| Diameter | 3.25 mm 4.0 mm 5.0 mm |
||
| Weld Metal Composition | C | Si | Mn |
| 0.1 % | 0.1 % | 0.5 % | |
