With just a few settings the new plasma cutting units of the Smart Focus series achieve excellent results in the cutting range from 1 to 40 mm. Even under challenging conditions highest cutting quality and speed are realised. In such cases, we use our well-proven cutting technologies, e.g. Contour Cut for cutting mild steel. The optimised gas control units and torches protect the consumables, reduce the gas consumption and the costs per cutting metre. As a further development of the Contour Cut technology the new Silent Cut technology reduces the sound pressure level by up to 15 dB(A) during cutting with currents between 60 and 160 A.

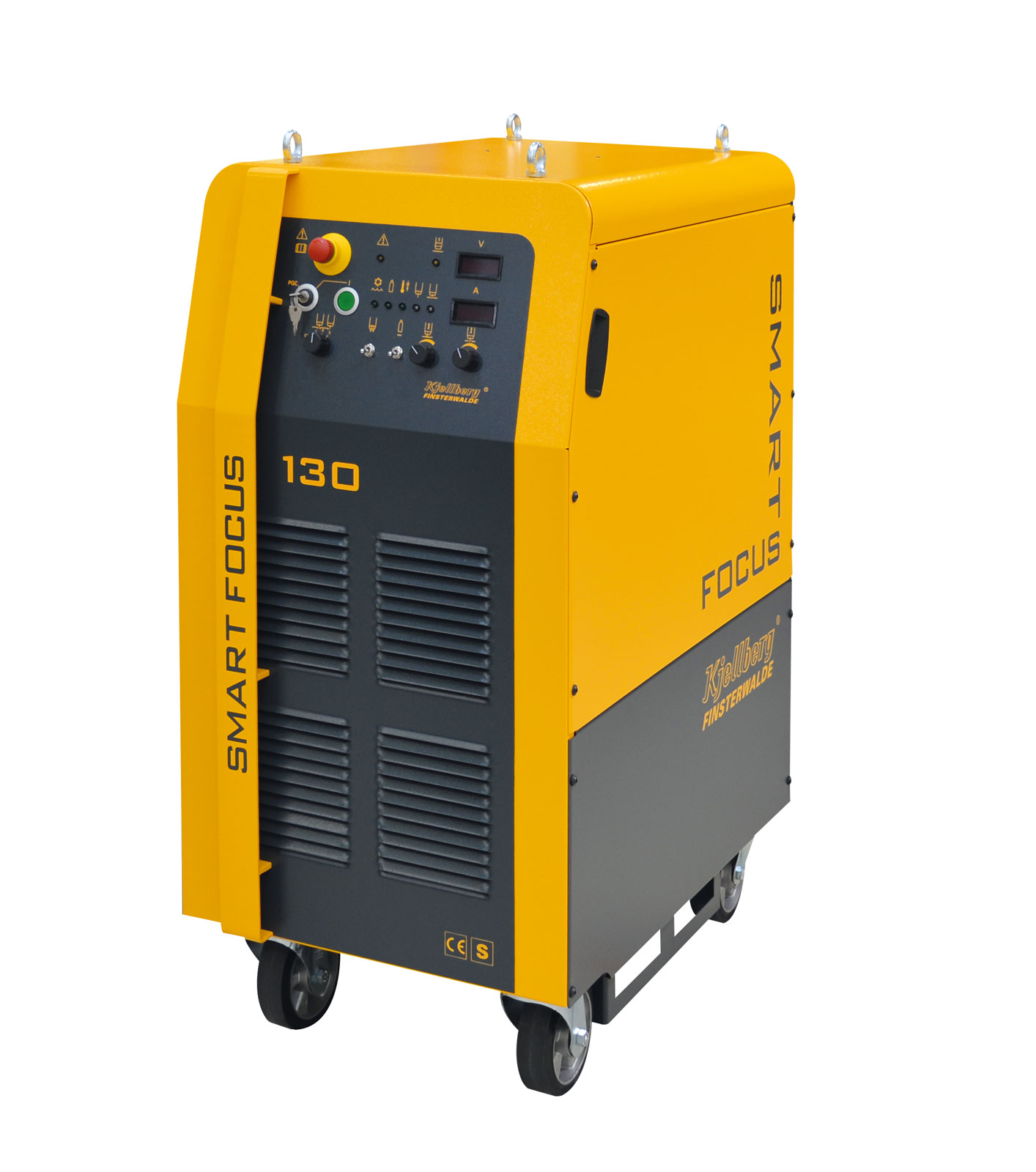

Power source | Smart Focus 130 |
Mains voltage* | 3x 400 V, 50 Hz |
Cutting current | 35 - 130 A |
Marking current | 10 - 50 A |
Cutting range Maximum Recommended |
40 mm 1 - 32 mm |
Piercing | 25 mm |
Plasma gases | O2, Ar / H2, N2, Air |
Piercing | Ar, N2 |
Dimensions (L x W x H) | 1030 x 570 x 1260 mm |
Weight | 266 kg |
Plasma machine torch | PerCut 2000 |
Quick change head | PerCut 4000 |
*Other voltages and frequencies available upon request.
Contour Cut
Exact contours and holes in mild steel with a diameter to material thickness ratio of 1:1 (Diameter:material thickness) | more...
Contour Cut Speed
Contour cutting in mild steel with similar quality and up to 50% higher speed | more...
Silent Cut
Cutting of mild steel with reduced sound pressure level | more...
HiFinox
Plasma cutting of stainless steel and aluminium from 1 to 6 mm with significantly less dross | more...
Ar/H2 Mix
Excellent cutting results thanks to active mixing of single gases for stainless steel and aluminium starting from 6 mm | more...
Marking, notching, punching
Individual labeling of the material | more...
