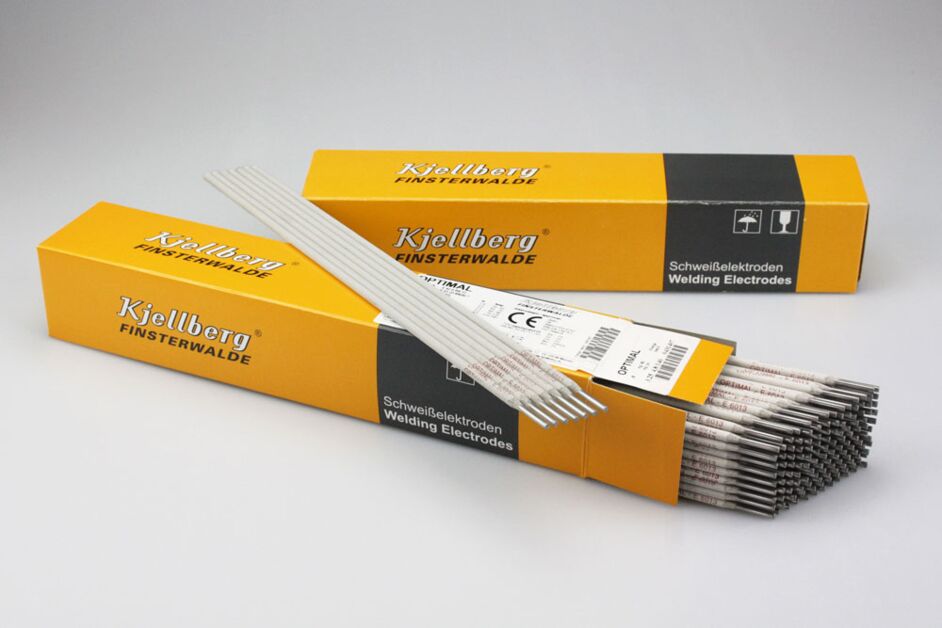

Optimal is an electrode for welding unalloyed and low-alloyed steels. It is especially suited for welding thin sheets and thin-walled pipes and profiles. The electrode is characterised by fine drop transfer, low spatter, very finely rippled seam surfaces without undercutting and easy slag removal. Ignition, re-ignition and welding is also possible with low current. The arc is smooth and stable.
DIN EN ISO 2560-A | E 42 0 RB 12 |
AWS A 5.1 | E 6013 |
Construction steel | S235 to S355 |
Ship steel | A, B, D A32/36, D32/36 |
Fine-Grained steel | S275 to S355 |
Pressure tank steel | P195 to P355 |
Pipe steel | L210 to L360 |
Cast steel | GE200, GE240, GP240, G21 Mn5 |
Reinforcing steel | BSt 420, BSt 500 |
Type of current | AC DC negative pole DC plus pole |
||
Diameter | 2.0 mm 2.5 mm 3.25 mm 4.0 mm |
||
Weld Metal Composition | C | Si | Mn |
0.01 % | 0.25 % | 0.5 % |
