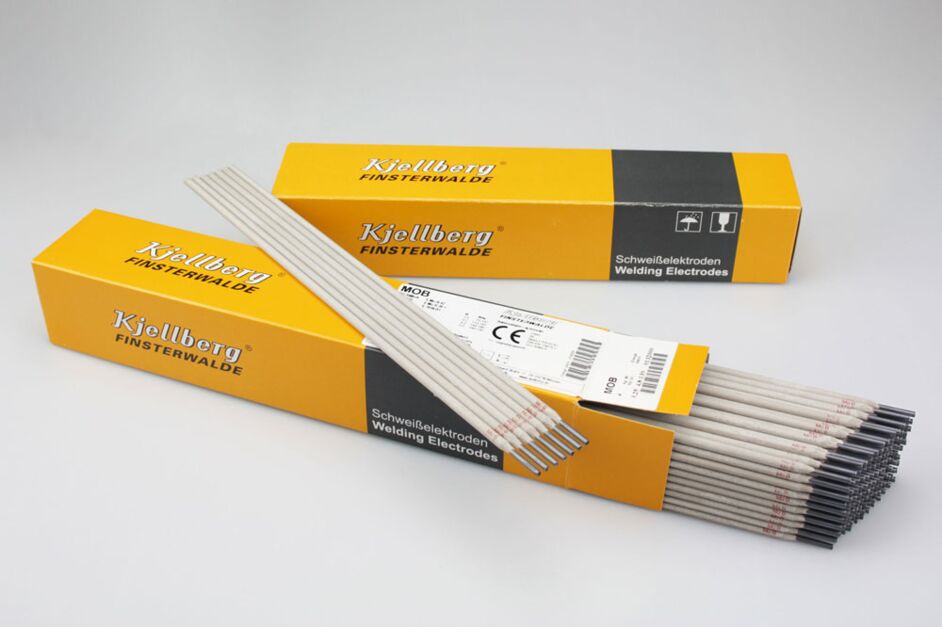

With a molybdenum content of 0.4 % in the all-weld metal, the electrode MoB is especially suited for steel 16Mo3. Typical application areas are boiler, container and pipeline construction at working temperatures of up to 520 °C.

Inquire Now


DIN EN ISO 3580-A E Mo B 42
AWS A 5.5 E 7018-A1
Construction steel S275 to S355
Fine-Grained steel S275 to S460
Pressure tank steel P195 to P460, 16Mo3
Pipe steel L210 to L450
Cast steel GP240, G20Mo5

PA      PB     PC      PD      PF

Type of current DC plus pole
Diameter 2.5 mm
3.25 mm
4.0 mm
Weld Metal Composition C Si Mn Mo
  0.08 % 0.4 % 1 % 0.4 %

TÜV      CE Conformité Européenne
