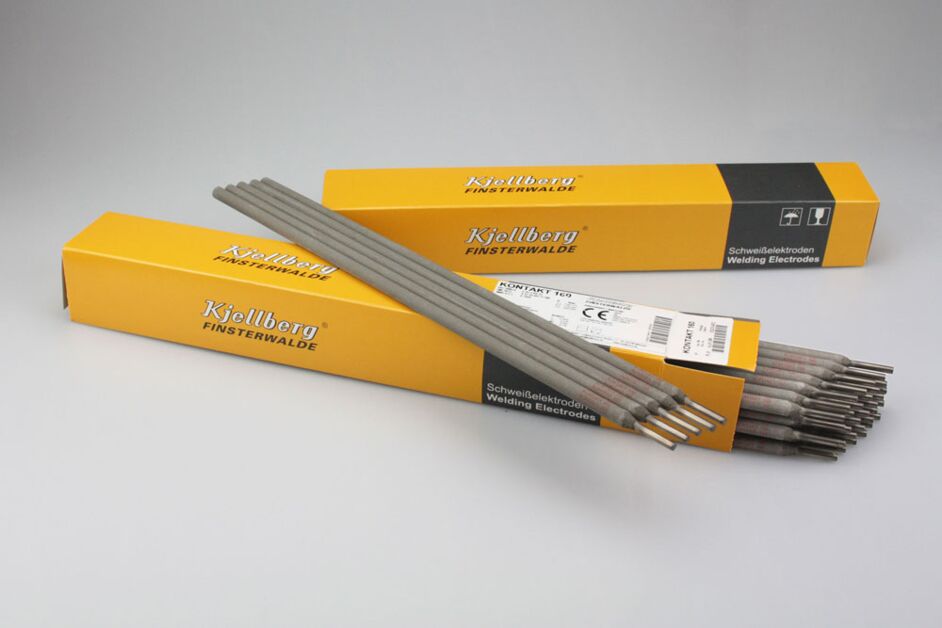

KONTAKT 160
Kontakt 160 is a high-performance electrode, especially designed for fillet welds, filler and cover passes in welding positions PA and PB in mechanical engineering, ship and bridge building. It allows very cost-efficient welding due to a high run-out length. It is characterised by a smooth and stable arc, very clean seam surfaces and self-lifting slag.
Standards:
| DIN EN ISO 2560-A | E 42 0 Z RR 53 |
| AWS A 5.1 | E 7024 |
| Construction steel | S235 to S355 |
| Ship steel | A, B, D, A32/36, D32/36 |
| Pressure tank steel | P195 to P275 |
| Pipe steel | L210 to L360 |
| Cast steel | GE200, GE240, GP240 |
| Reinforcing steel | BSt 420, BSt 500 |
| Type of current | AC DC negative pole |
|||
| Diameter | 3.25 mm 4.0 mm 5.0 mm |
|||
| Weld Metal Composition | C | Si | Mn | Ni |
| 0.08 % | 0.4 % | 0.9 % | 0.7 % | |
