KA 7-UPP

The KA 7-UPP is Kjellberg's most powerful standard automat for submerged-arc welding with parallel wire. The self-driven welding automat is equipped with a encoder-driven carriage with all-wheel drive and is suited for welding plane sheets as well as inner tubes according to individual requirements. The automat can be led on rails, flanges and profiles by means of infinitely adjustable support rolls. The modular design of the KA series allows the flexible adjustment of the KA 7-UPP to any welding task. Freely adjustable cross supports for positioning the welding head and two different gauges open up a wide range of applications. The conversion to other technologies can also be done quickly and easily. In combination with the Kjellberg power sources, nominal values for welding current, arc voltage and welding speed can be pre-adjusted which makes it easier to control the entire process. Separately selectable start-up and end crater filling phases as well as integrated automatic ignition and burn-free functions guarantee optimum welding quality and a maximum degree of automation. The integrated laser pointer ensures professional seam tracking for optimum seam geometry.

Inquire Now

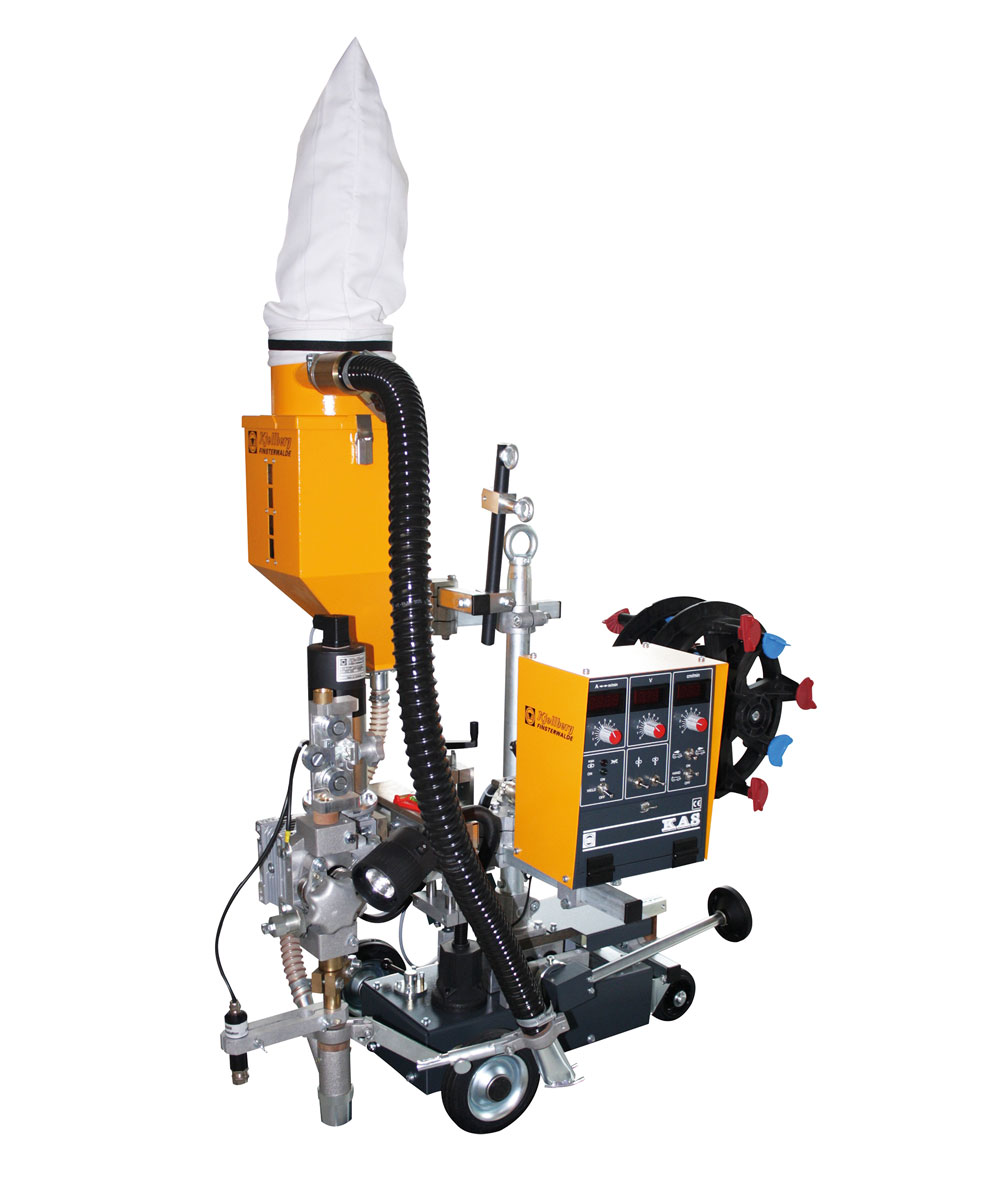

Welding automat KA 7-UPP
Welding current 1200 A
Wire diameter
  Solid wire
2 x 2.0 - 2 x 3.0 mm
  Flux cored wires
2 x 2.0
2 x 2.4 mm
2 x 3.2 mm
Travel speed 0.1 - 1.5 m/min
Dimensions
(L x W x H)
1050 x 600 x 900 mm
Weight 68 kg
Recommended
power source
GTH 1202
