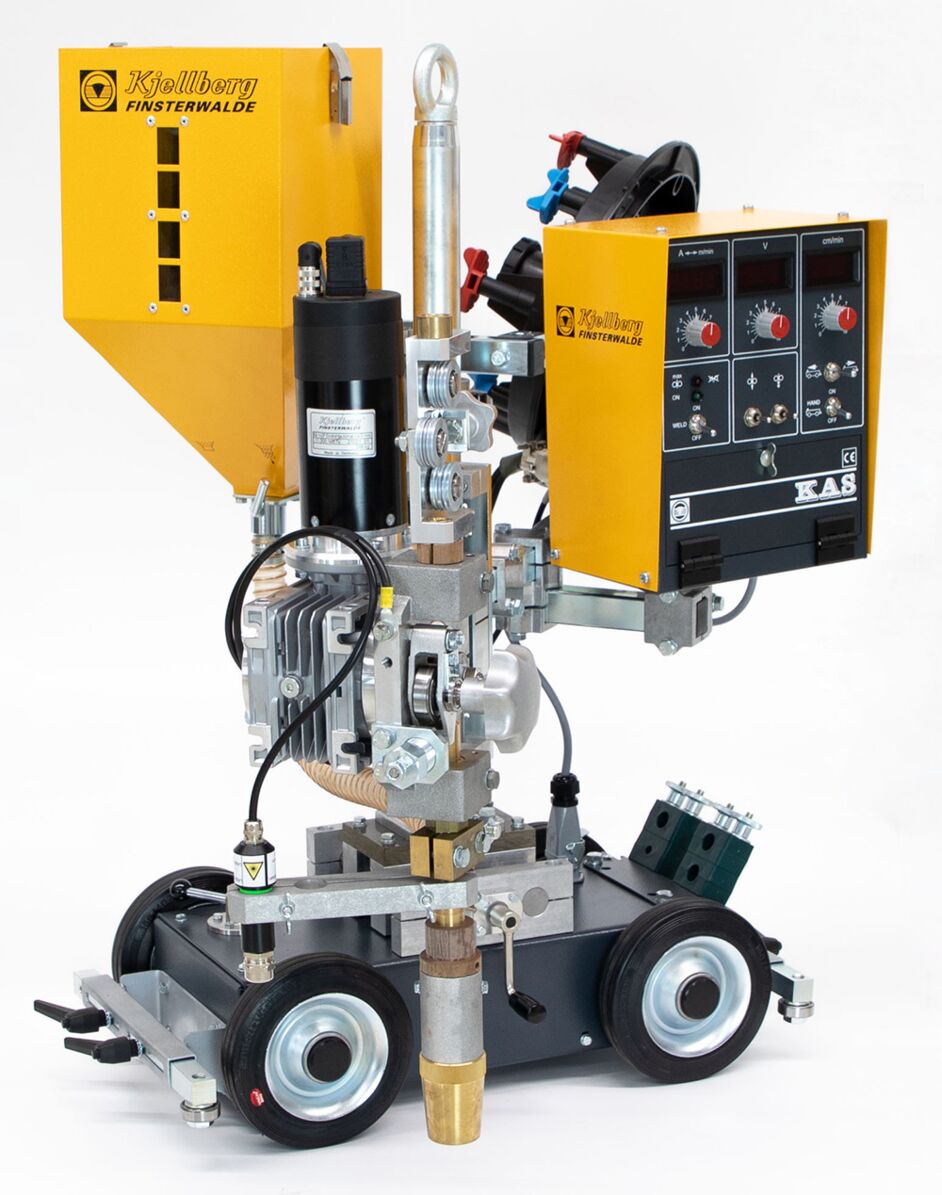

The mobile and self-driven Kjellberg automat KA 1-UP can be used for single wire welding of plane sheets and inner tubes. The submerged-arc welding automat is available in three versions: for a maximum wire diameter of 3 mm respectively 5 mm. Pipe inside welding is possible with a diamter of 1500 mm or more. The KA 1-UP automats can be easily and flexibly adapted to any welding task. Nominal values for welding current, arc voltage and welding speed can be pre-selected in coordination with the power source. The integrated automatic ignition and automatic burn-free fiunctions guarantee an optimum welding process. Start-up phase and end crater filling phase are separately adjustable. Equipped with laser pointers and infinitely configurable distance rolls for profiles, webs and flanges, the KA 1-UP automats offer professional conditions for precise seam tracking and a high degree of automation. The encoder-driven carriage with all-wheel drive can be operated with three different track widths. Track wheels are an optionally available extra for all carriages. They guarantee a constant distance to the workpiece.

Inquire Now
Welding automat KA 1-UP
3 mm
5 mm
Welding current 800 A 1200 A
Wire diameter 1.6 - 3.2 mm 2.5 - 5.0 mm
Travel speed 0.1 - 1.5 m/min 0.1 - 1.65 m/min
(L x W x H)
1110 x 560 x
940 mm
1050 x 600 x
900 mm
Weight 57 kg 66 kg
power source
GTH 802 GTH 1202
