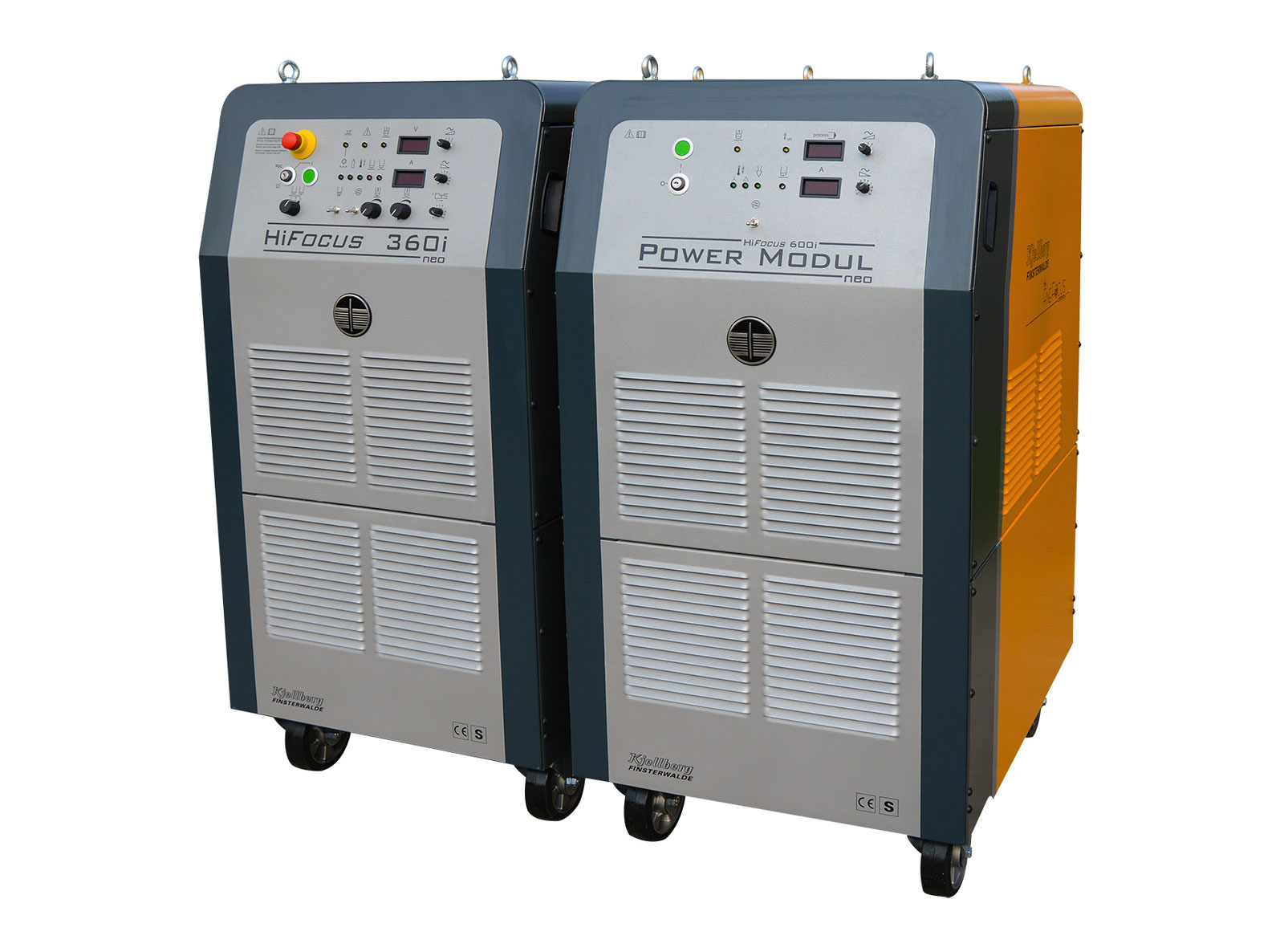

HiFocus 600i neo
The HiFocus 600i neo is the most powerful plasma cutting system in the HiFocus neo series and is designed for demanding automated cutting processes with high material thicknesses. Materials with a thickness of 0.5 to 160 mm can be cut precisely. With two power sources, consisting of the HiFocus 360i neo and the HiFocus 600i neo Power Module, the system achieves a maximum cutting current of 600 A.
HiFocus neo technology enables high cutting and marking speeds while maintaining high cut quality for electrically conductive materials. The efficient use of consumables supports long service lives, economical cutting processes and reduced process costs.
In addition to cutting, the HiFocus 600i neo plasma cutting system is also suitable for marking, bevel cutting and underwater cutting. It can be flexibly combined with CNC guiding systems and meets the requirements of demanding applications in steel construction, plant engineering and industrial production.
The HiFocus 600i neo features the proven
Contour Cut technology for fast and precise cutting of contours, holes and webs in mild steel.
| Power source | HiFocus 360i neo | HiFocus 600i neo Power Module |
| Mains voltage* | 3x 400 V, 50 Hz | 3x 400 V, 50 Hz |
| Cutting current at 100% duty cycle | 10–360 A | 100–300 A |
| Marking current | 5–50 A | – |
| Cutting range | 0.5–160 mm | – |
*Other voltages and frequencies available on request.
Contour Cut
Exact contours and holes in mild steel with a diameter to material thickness ratio of 1:1 (Diameter:material thickness) | more...
Contour Cut Speed Contour cutting in mild steel with similar quality and up to 50% higher speed | more...
Silent Cut Cutting of mild steel with reduced sound pressure level | more...
HiFinox Plasma cutting of stainless steel and aluminium from 1 to 6 mm with significantly less dross | more...
Ar/H2 Mix Excellent cutting results thanks to active mixing of single gases for stainless steel and aluminium starting from 6 mm | more...
Marking, notching, punching Individual labeling of the material | more...
Plasma cutting with HiFocus 600i neo: Ni36 material (1.3912), 160 mm
Underwater plasma cutting with HiFocus 600i neo: stainless steel, 12 mm
Plasma cutting with HiFocus 600i neo: 120 mm stainless steel
Piercing with HiFocus 600i neo: 100 mm stainless steel
