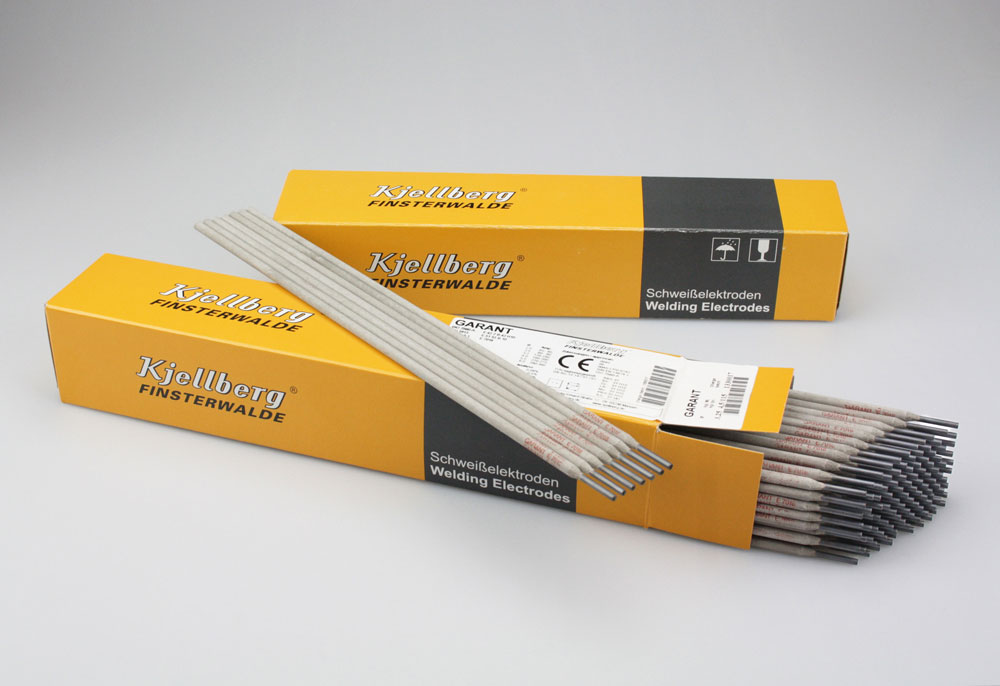

Garant is a general purpose basic electrode with medium-fine drop transfer and excellent welding properties for joint welding of unalloyed and low-alloyed steels in mechanical engineering, steel and boiler construction and ship building. It is especially suitef for welding in constrained positions. It is also suited for steels with higher phosphor, sulfur and carbon content because of the high ability for desoxidation and the low gas content of the weld metal. The special coating provides for low moisture absorption (LMA type).

Inquire Now


DIN EN ISO 2560-A E 42 2 B 42 H10
AWS A 5.1 E 7018


Construction steel S235 to S355
Ship steel A32/36, D32/36, E32/36, F32/36, A/D
Fine-Grained steel S275 to S420
Pressure tank steel P195 to P355
Pipe steel L210 to L360
Cast steel GE200, GE240, GP240, G21 Mn5
Reinforcing steel BSt 420, BSt 500

PA      PB     PC      PD      PF

Type of current DC plus pole
Diameter 2.0 mm
2.5 mm
3.25 mm
4.0 mm
5.0 mm
6.0 mm
Weld Metal Composition C Si Mn
  0.08 % 0.50 % 1.0 %

                             Deutsche Bahn     TÜV     CE Conformité Européenne
