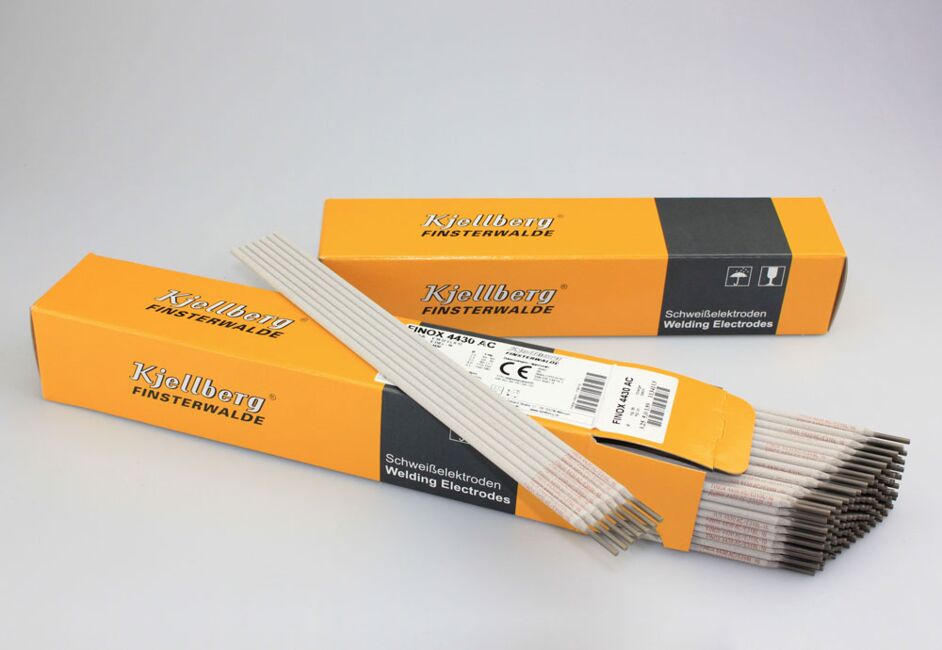

FINOX 4430 AC
Finox 4430 AC is an electrode for joint welding on low-carbon, unstabilised and stabilised, austenitic, chemically stable chromium-nickel-molybdenum steels at working temperatures of up to 400 °C. This stainless steel elctrode is also suited for platings of similar alloy.
Standards:
| DIN EN ISO 3581-A | E 19 12 3 L R 12 |
| AWS A 5.4 | E 316 L-16 |
| Material no. | 1.4430 |
| 1.4401 |
X 5 CrNiMo 17-12-2 |
| 1.4404 | X 2 CrNiMo 17-12-2 |
| 1.4406 | X 2 CrNiMoN 17-11-2 |
| 1.4408 | GX 5 CrNiMo 19-11-2 |
| 1.4409 | GX 2 CrNiMo 19-11-2 |
| 1.4429 | X 2 CrNiMoN 17-13-3 |
| 1.4435 | X 2 CrNiMo 18-14-3 |
| 1.4436 | X 3 CrNiMo 17-13-3 |
| 1.4571 | X 6 CrNiMoTi 17-12-2 |
| 1.4580 | X 6 CrNiMoNb 17-12-2 |
| - | AISI 316 |
| - | AISI 316L |
| - | AISI 316Cb |
| - | AISI 316Ti |
| Type of current | AC DC plus pole |
|||||||||||
| Diameter | 1.6 mm 2.0 mm 2.5 mm 3.25 mm 4.0 mm 5.0 mm |
|||||||||||
| Weld Metal Composition | C | Si | Mn | Cr | Ni | Mo | Structure | |||||
| 0.02 % | 0.9 % | 0.8 % | 19 % | 12.5 % | 2.7 % | Austenite with approx. 8 % ferrite | ||||||
