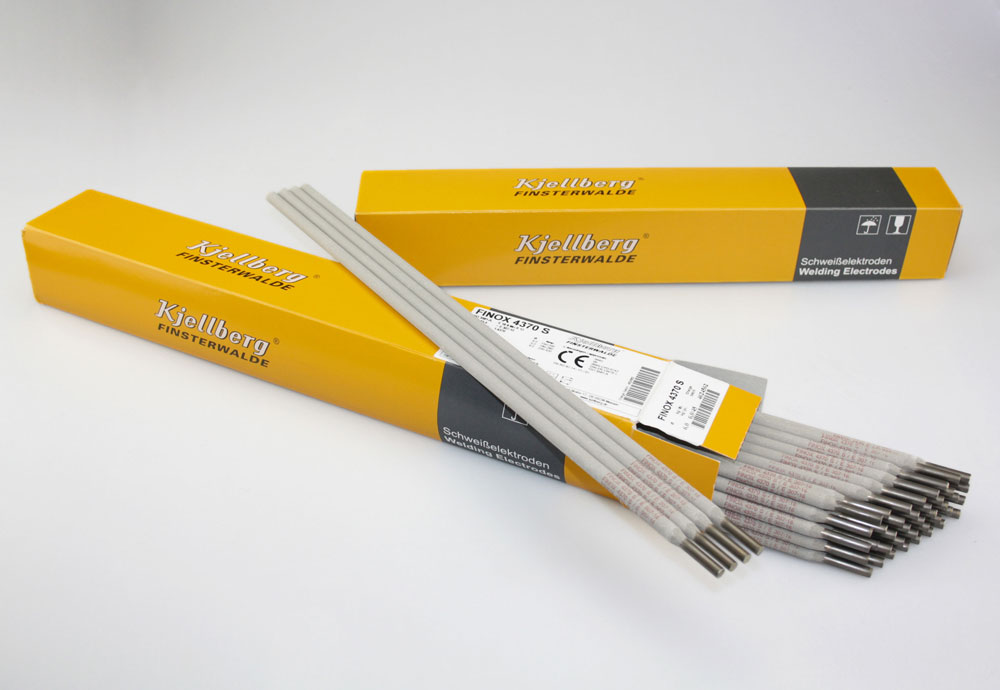

This electrode was especially designed for surface welding on rails (e.g. tramways, industrial and coal railways). Further, it is suited for joint welding of unalloyed and low-alloyed steels with high-alloyed steels, cast steel types, for austenite-ferrite joints, for welding of steels with high carbon content and difficult-to-weld steels as well as austenitic hard-manganese steels, for welding of buffering layers and for wear-resistant surfacing in case of cold-hardening impact, pressure and rolling load. The weld metal is fully austenitic, corrosion-resistant, scale-resistant and can be cold-hardened up to a hardness of 350 HB.
DIN EN ISO 3581-A | E 18 8 Mn R 12 |
DIN 14700 | E Fe 10 |
AWS A 5.4 | ≈ E 307-16 |
Material no. | 1.4370 |
Type of current | AC DC plus pole |
|||||
Diameter | 5.0 mm 6.0 mm |
|||||
Weld Metal Composition | C | Si | Mn | Cr | Ni | Structure |
0.08 % | 0.5 % | 5.5 % | 19.5 % | 9 % | Austenite |
