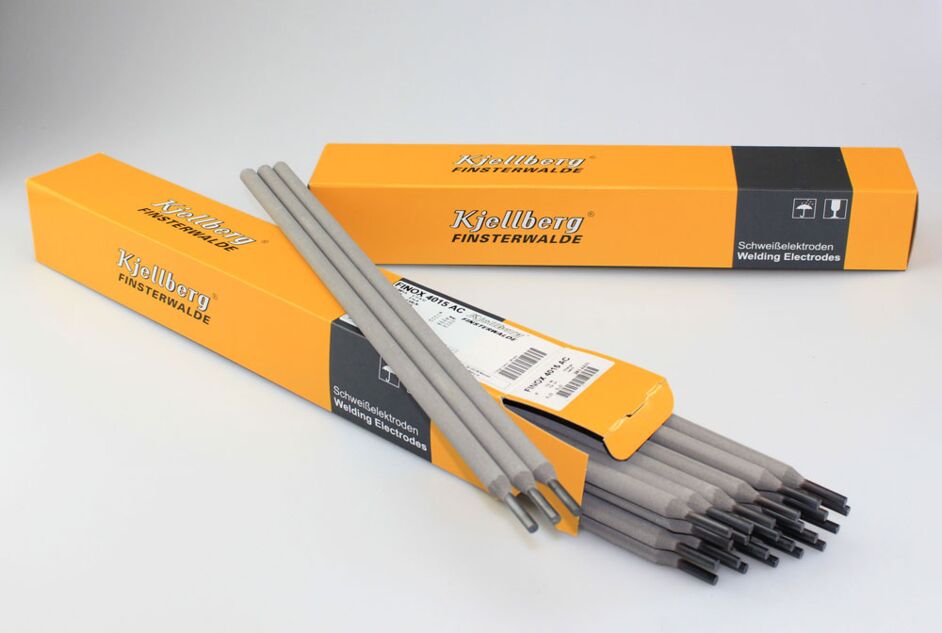

Rutile-coated high-performance electrode for welding of stainless, heat-resistant and low-temperature steels and cast steel types, on ferritic steels of the same grade and similar heat-treatable steels / cast steel types. It is suited for surfacing and plating on sealing faces on water, steam and gas valves made of unalloyed and low-alloy steels / cast steel grades. The electrode is ideal for surface welding on high-wear rail parts and can be used for the reconditioning and repair of tram, plant and coal tracks – for working temperatures up to 475 °C, weld metal hardness for surface welding: approx. 300 HB in the first layer (unannealed).
DIN EN ISO 3581-A | E 17 R 52 |
DIN 14700 | E Fe 7 |
AWS A 5.4 | E 430-26 |
Material no. | 1.4015 |
1.4057 | X 17 CrNi 16-2 |
1.4059 | GX 22 CrNi 17 |
1.4510 | X 3 CrTi 17 |
- | AISI 430Ti, 431 |
Type of current | AC DC plus pole |
||||
Diameter | 4.0 mm 5.0 mm 6.0 mm |
||||
Weld Metal Composition | C | Si | Mn | Cr | Structure |
0.08 % | 0.6 % | 0.5 % | 17.0 % | Ferrite/Martensite |
