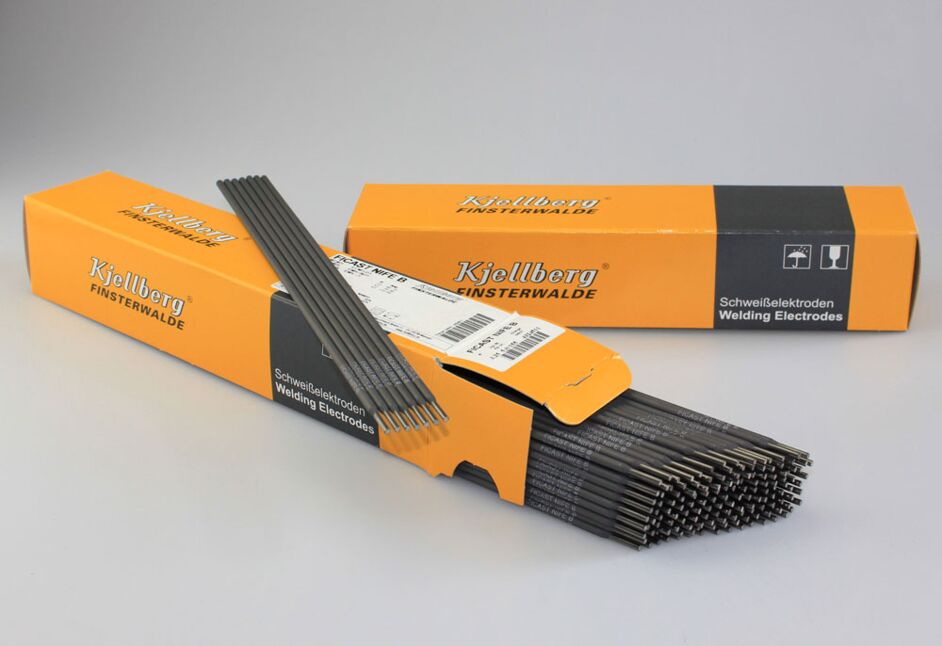

Nickel-iron electrode for cold welding of gey cast iron with lamellar and globular graphite structure and malleable iron; also suited for joints of of cast iron (GGL and GGG types) with unalloyed steel materials; high ampacity, stable arc and good wetting abilities due to bi-metallic core wire. A higher strength can be achieved compared to welding with Ficast Ni. The weld metal is machinable and highly crack-resistant.
DIN EN ISO 1071 | E C Ni Fe-Cl3 |
AWS A 5.15 | E NiFe-CI |
Type of current | AC DC negative pole DC plus pole |
||
Diameter | 2.5 mm 3.25 mm 4.0 mm |
||
Weld Metal Composition | C | Fe | Ni |
1.3 % | ≈40 % | Rest |
