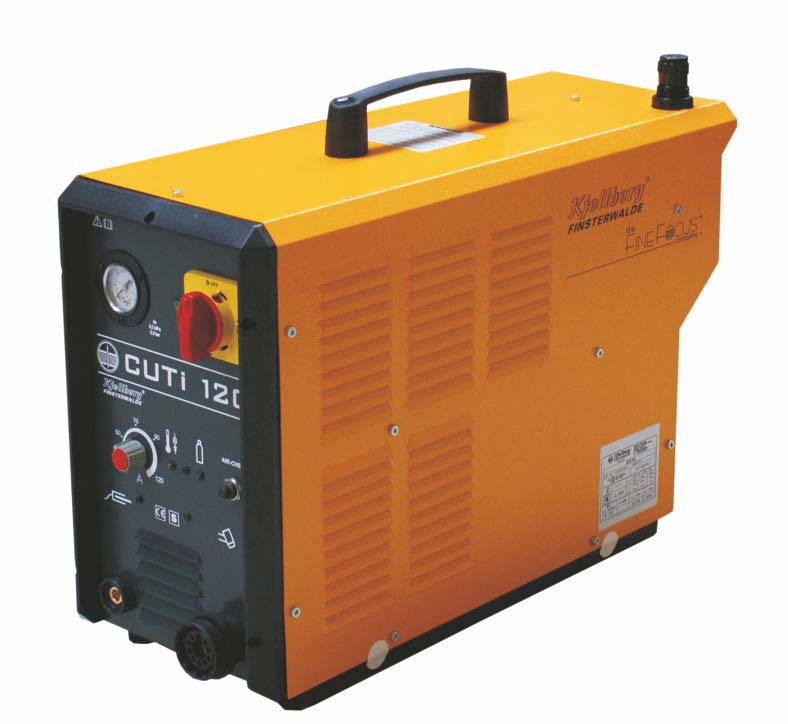

CUTi 120
The CUTi 120 is the most powerful unit of this product line with a cutting range of up to 50 mm material thickness. It offers enormous performance combined with portability which makes it ideally equipped for heavy use and simple applications. It is excellently suitable for use in industry, craft and in workshops.
| Power Source | CUTi 120 |
| Mains voltage* | 3x 400 V |
| Cutting current at 35% duty cycle at 100% duty cycle |
120 A 80 A |
| Cutting range | up to 50 mm |
| Dimensions (L x W x H) | 610 x 230 x 410 mm |
| Weight | 28.5 kg |
| Plasma torch | KjellCut 120 |
*Other voltages and frequencies on request.
