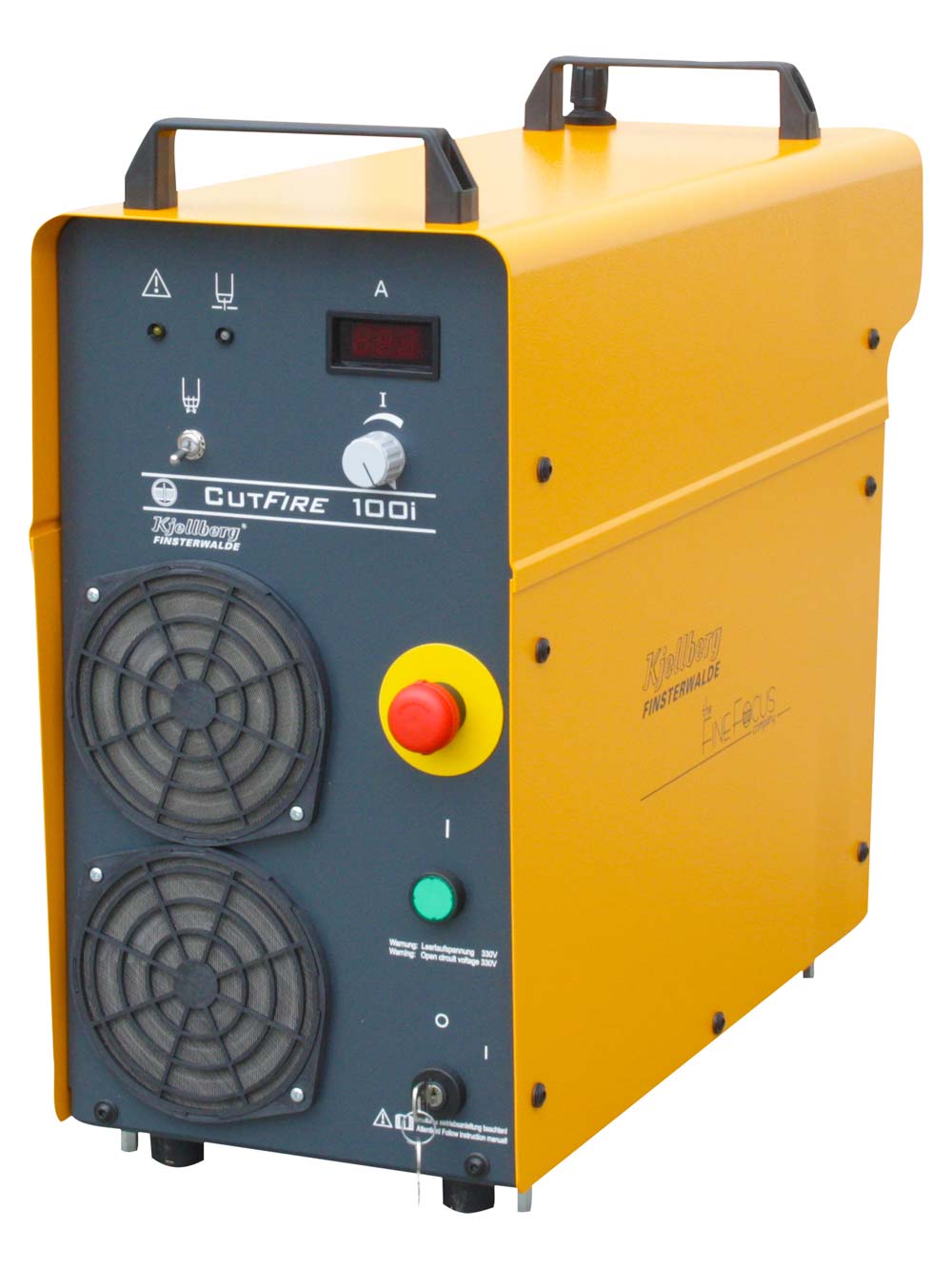

CutFire 100i

The CutFire 100i is a powerful plasma unit with air as plasma gas. It offers a wide range of applications at low investment costs. It is equipped with an adjusted inverter technology and is one of the few air-cooled systems on the market that offers a duty cycle of 100%. The cutting inverters CutFire 100i are equipped with the machine torch Flash 101 that uses. air as swirl gas. The air rotating around the plasma arc stabilizes the arc and thus enables piercing up to 20 mm. The cooling and protective effect of the swirl gas ensures higher cutting speeds and an increased lifetime of the consumables. The CutFire 100i is ideally suited for cutting thin sheets in ventilation and switch cabinet construction, in metal construction and many other craftsmen businesses, industrial and production plants.

Inquire Now
Power source CutFire 100i
Cutting current at 100% duty cycle* 35 - 100 A
Cutting range 1 - 40 mm
Piercing up to 20 mm
Dimensions (L x W x H) 710 x 280 x 590 mm
Weight 50 kg
Plasma torches Flash 101 G/L

* in combination with torch Flash 101 G/L: 100 A at 75 % d. c.
