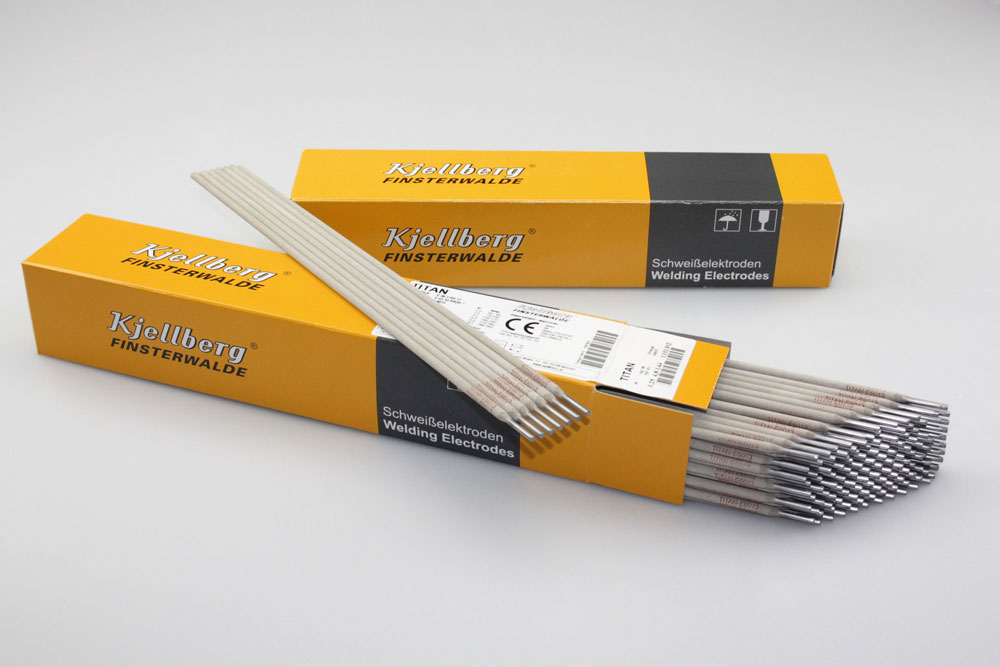

Titan is the general purpose electrode for root and constrained position welding in pipeline, container and boiler construction and ship building. It produces a finely rippled, well-formed and x-ray safe welding seam with notch-free transition to the base material. Another advantage is the easy slag removal - also in root positions.
| DIN EN ISO 2560-A | E 38 2 RB 12 |
| AWS A 5.1 | E 6013 |
| Construction steel | S235 to S355 |
| Ship steel | A, B, D, E, A32/36, D32/36, E32/36 |
| Fine-Grained steel | S275 to S355 |
| Pressure tank steel | P195 to P355 |
| Pipe steel | L210 to L245 |
| Cast steel | GE200, GE240 |
| Reinforcing steel | BSt 420, BSt 500 |
![]()
| Type of current | AC DC negative pole |
||
| Diameter | 2.5 mm 3.25 mm |
||
| Weld Metal Composition | C | Si | Mn |
| 0.08 % | 0.15 % | 0.5 % | |
