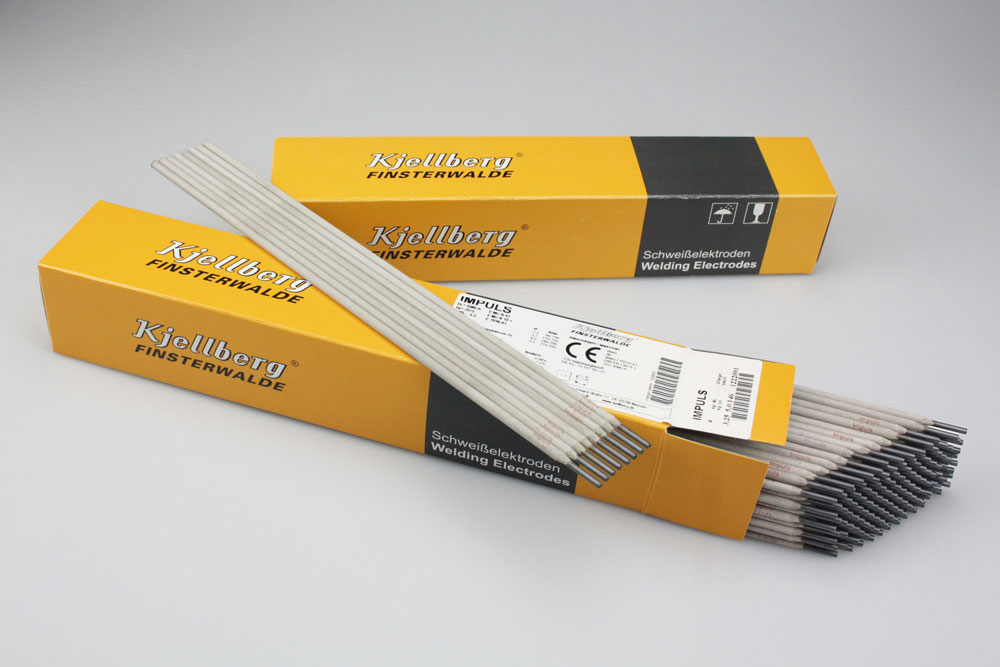

IMPULS
With a molybdenum content of 0.4 % in the all-weld metal, the electrode Impuls is suited for steel 16Mo3. By adding a low nickel content this stainless steel electrode is tough at low temperatures up to -30 °C. It is especially suited for pipe steel and high-strength fine grained steel.
Standards:
| DIN EN ISO 3580-A | E Mo Z B 42 |
| DIN EN ISO 2560-A | E 50 4 1NiMo B 42 |
| AWS A 5.5 | E 7018-A1 |
| Construction steel | S275 to S355 |
| Ship steel | A32/36, D32/36, E32/36, F32/36, A/D/E/F40 |
| Fine-Grained steel | S275 to S500 |
| Pressure tank steel | P195 to P500, 16Mo3 |
| Pipe steel | L210 to L450 |
| Cast steel | GP240, G20Mo5, G21Mn5 |
| Reinforcing steel | BSt 420, BSt 500 |
| Type of current | DC plus pole | ||||
| Diameter | 2.5 mm 3.25 mm 4.0 mm 5.0 mm |
||||
| Weld Metal Composition | C | Si | Mn | Ni | Mo |
| 0.08 % | 0.5 % | 1.4 % | 0.6 % | 0.4 % | |
