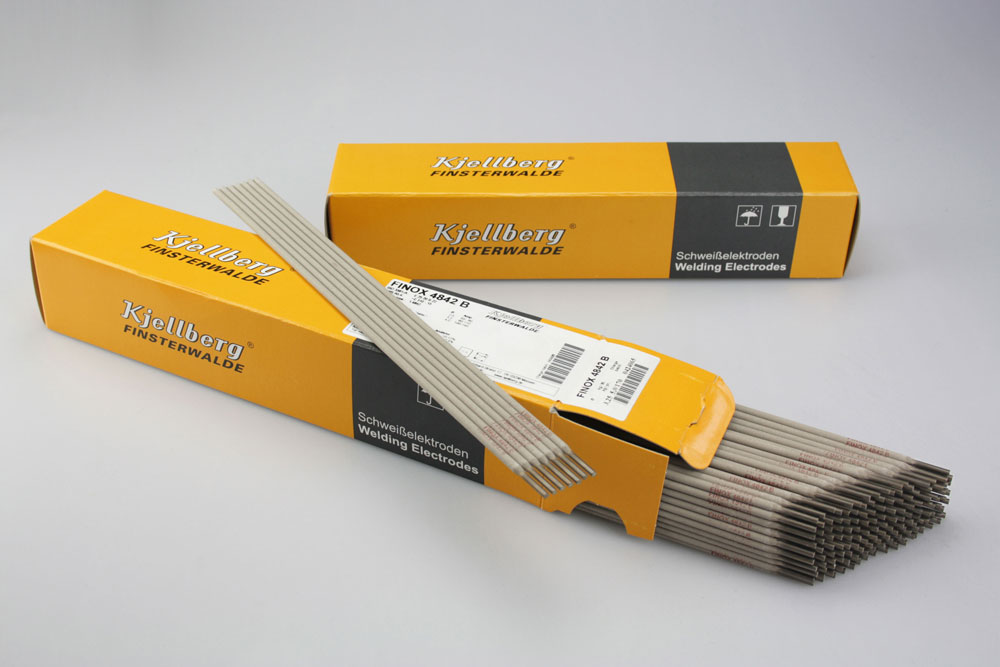

Finox 4842 B is a stick electrode for joint welding and surfacing on heat-resistant chromium-nickel steels and cast steel types of the same or similar alloy at working temperatures of up to 1200 °C, for tough joints, intermediate and filler layers when welding chromium steel and cast steel types.
Further, this electrode is suited for joining unalloyed and low-alloyed steels and cast steel types or rustless and heat-resistant chromium steels and cast steel types with austenitic steels and cast steel types at working temperatures of up to 300 °C.
The weld metal does not have sufficient resistance against reducing, sulphur-containing and carburising gases.In these cases, the cover layers should be welded with Finox 4820 AC.
Note:
This product is currently not part of our standard range.
We will gladly check availability upon request.
| DIN EN ISO 3581-A | E 25 20 B 22 |
| AWS A 5.4. | E 310-15 |
| Werkstoff-Nr | 1.4842 |
| 1.4710 | GX 30 CrSi 7 |
| 1.4713 | X 10 CrAl 7 |
| 1.4724 | X 10 CrAlSi 13 |
| 1.4742 | X 10 CrAlSi 18 |
| 1.4762 | X 10 CrAlSi 25 |
| 1.4828 | X 15 CrNiSi 20-12 |
| 1.4833 | X 12 CrNi 23-13 |
| 1.4840 | GX 15 CrNi 25-20 |
| 1.4841 | X 15 CrNiSi 25-21 |
| 1.4845 | X 8 CrNi 25-21 |
| 1.4846 | X 40 CrNi 25-21 |
| - | AlSl 310, 310S, 314 |
![]()
| Type of current | DC plus pole | |||||
| Diameter | 2.5 mm 3.25 mm 4.0 mm |
|||||
| Weld Metal Composition | C | Si | Mn | Cr | Ni | Structure |
| 0.1 % | 0.8 % | 2.5 % | 25 % | 20 % | Austenite | |
