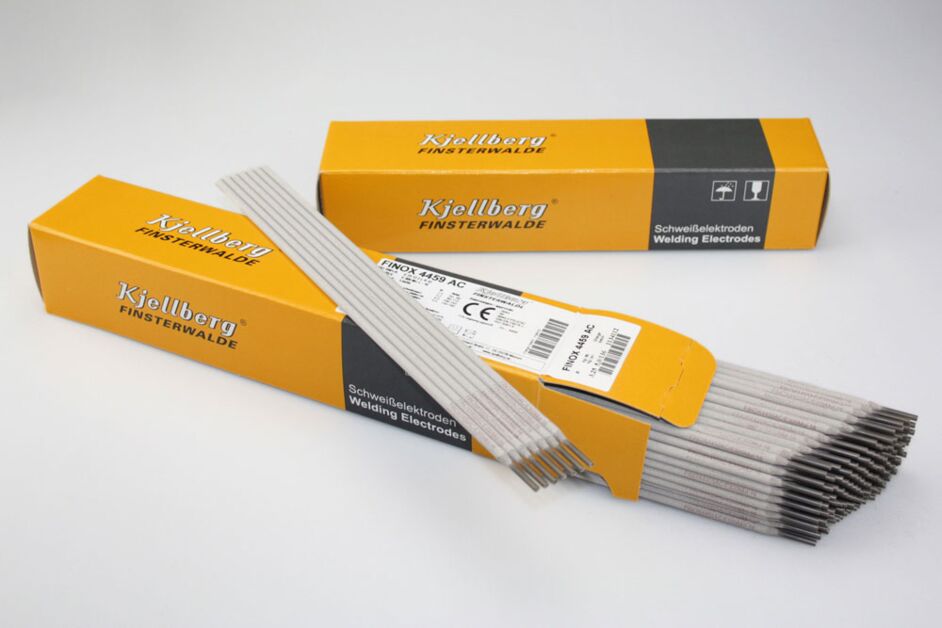

FINOX 4459 AC
Finox 4459 AC is an electrode for joint welding of unalloyed and low-alloyed steels with each other and among each other and with high-alloyed chromium, chromium-nickel, and chromium-nickel-molybdenum steels and cast steel types, for austenite-ferrite joints at working temperatures of up to 300 °C. This stainless steel electrode is also suited for welding of buffering layers and intermediate layers for chemically stable platings. The weld metal is already corrosion-resistant on the first layer and furthermore, it is especially crack-resistant, also regarding difficult-to-weld steels. At working temperatures of more than 500 °C there is the danger of embrittlement.
Standards:
| DIN EN ISO 3581-A | E 23 12 2 L R 32 |
| AWS A 5.4 | E 309 L Mo-16 |
| Material no. | 1.4459 |
- Black-and-white joints (Construction Steel and stainless steels)
- CrNiMo-Steel
- High-strength, alloyed and unalloyed heat-treated steel
| Type of current | AC DC plus pole |
||||||
| Diameter | 2.5 mm 3.25 mm 4.0 mm |
||||||
| Weld Metal Composition | C | Si | Mn | Cr | Ni | Mo | Structure |
| 0.02 % | 0.9 % | 0.7 % | 23 % | 13 % | 2.6 % | Austenite with approx. 15 % ferrite | |
